Ventilated Industrial Equipment Cabinet | Youlian

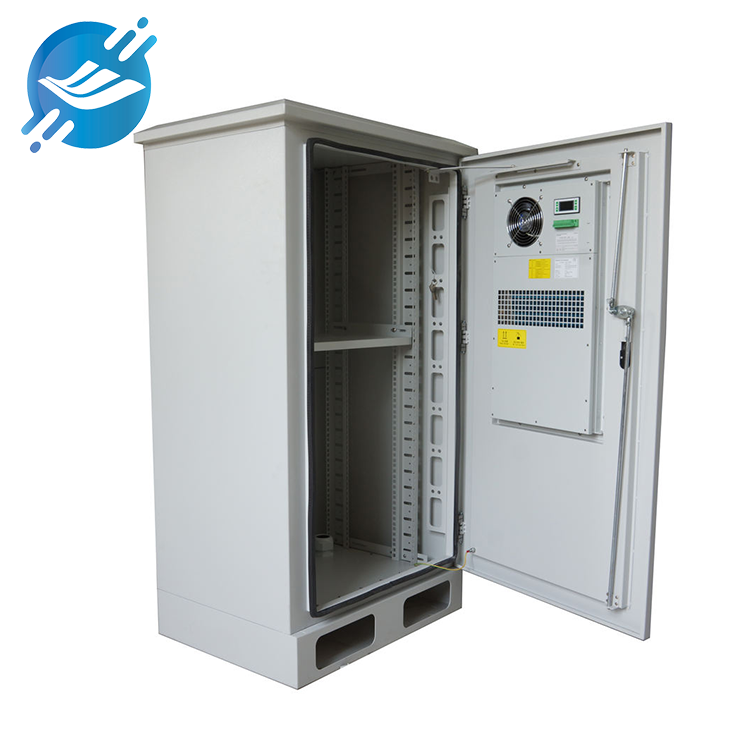

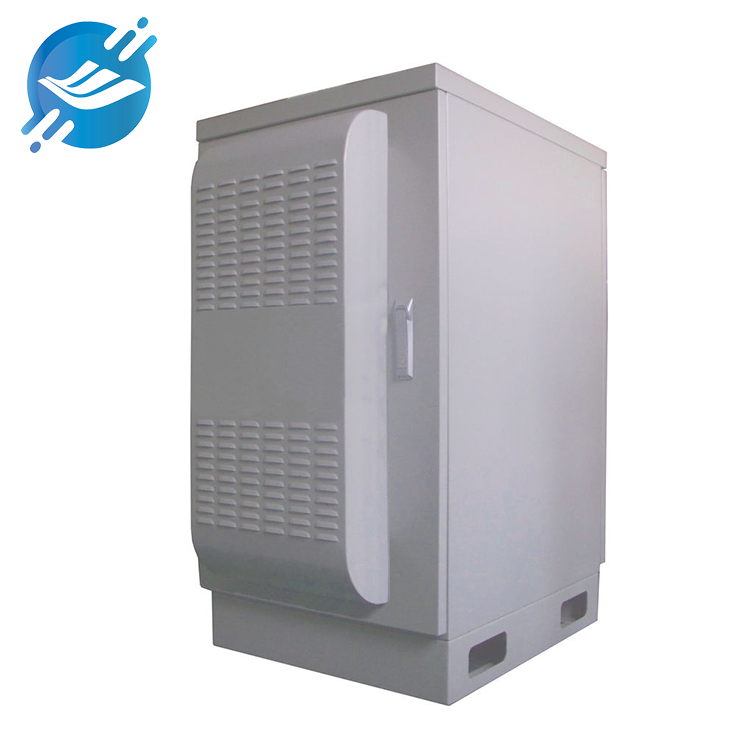

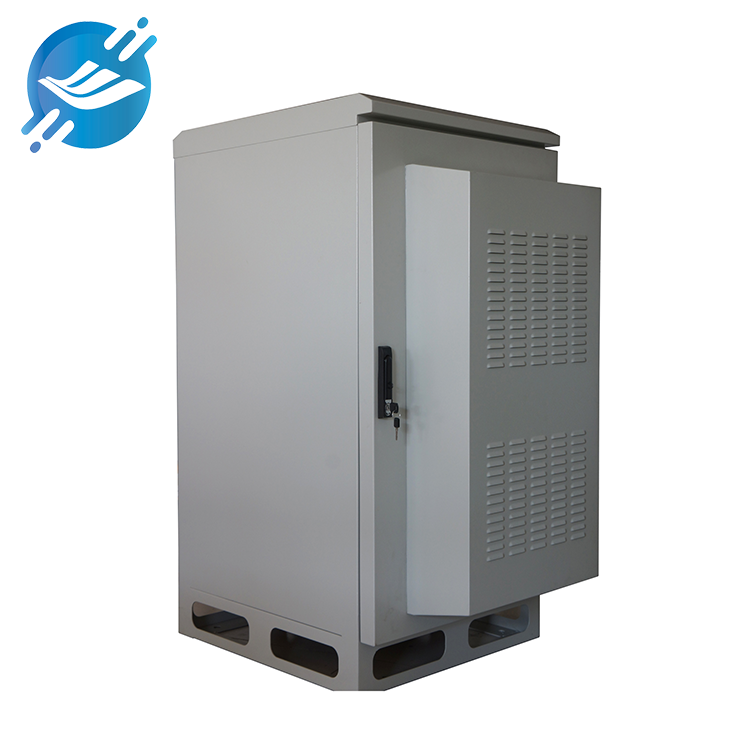

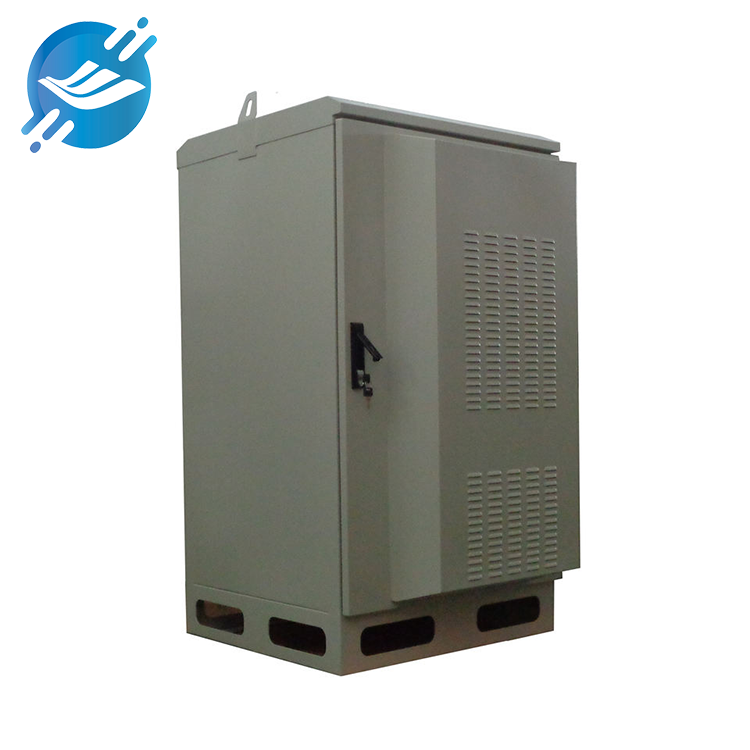

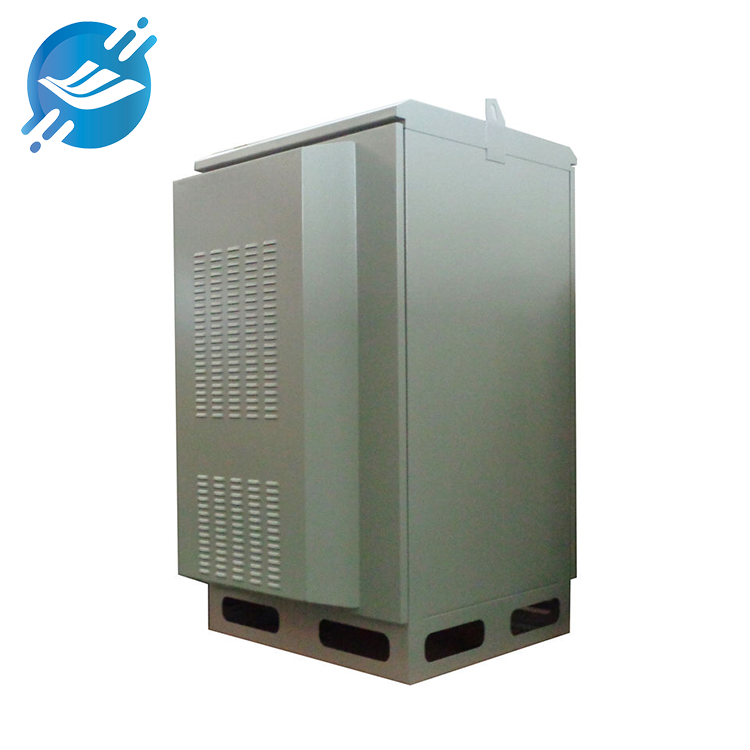

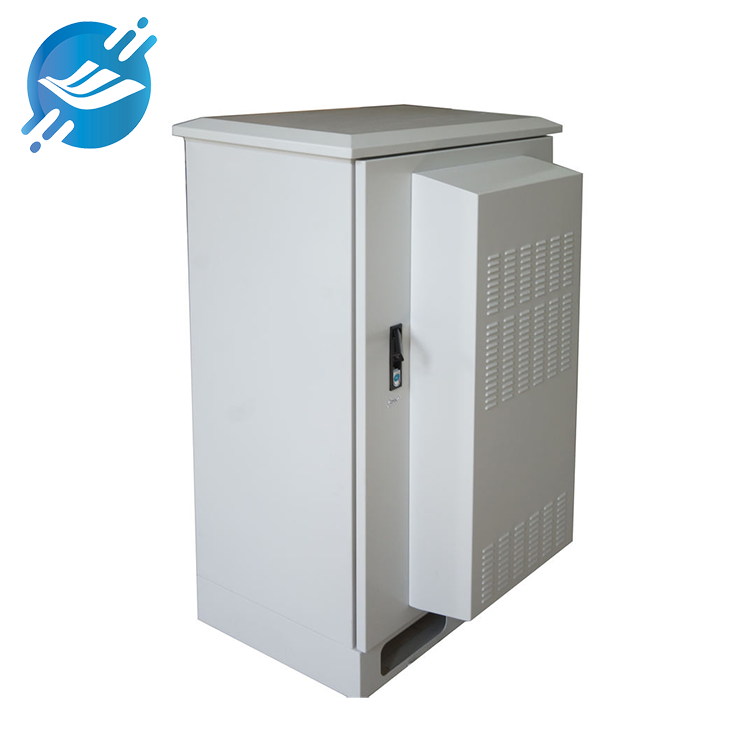

Industrial Equipment Cabinet Pictures
Industrial Equipment Cabinet Parameters
| Place of Origin: | Guangdong, China |
| Product name： | Ventilated Industrial Equipment Cabinet |
| Company name: | Youlian |
| Model Number: | YL0002565 |
| Material: | Cold Rolled Steel / Stainless Steel Optional |
| Surface Treatment: | Powder Coating |
| Standard Color: | White, Gray, Black, or Custom RAL Color |
| Structure: | Floor Standing Enclosure |
| Door Type: | Front Access Door with Ventilation Panels |
| Locking System: | Cam Lock / Custom Lock Optional |
| Ventilation: | Perforated Ventilation Panels |
| Installation: | Floor Standing / Fixed Installation |
| Assembly: | Knock-Down or Fully Assembled |
| Application: | Industrial, Commercial, Electrical Equipment Protection |
| Customization: | Size, Door, Lock, Ventilation, Mounting and Finish |
| Manufacturing Process: | Laser Cutting, Bending, Welding, Grinding, Powder Coating |
| Dimension: | Customizable according to equipment requirements |
| Weight: | Customizable according to material and configuration |
| MOQ: | 100 pcs |
Industrial Equipment Cabinet Features
The Ventilated Industrial Equipment Cabinet is designed as a robust outer metal enclosure for applications where equipment requires physical protection, organized installation space, and controlled ventilation. The cabinet body uses formed sheet metal panels to create a rigid enclosure that can withstand the demands of industrial and commercial environments. The clean rectangular construction makes the Ventilated Industrial Equipment Cabinet easy to integrate into workshops, equipment rooms, utility areas, production facilities, commercial spaces, and other professional environments. The enclosure can be manufactured in different material thicknesses according to the required strength, dimensions, installation conditions, and customer specifications. Cold rolled steel is suitable for many general-purpose applications, while stainless steel or other material options can be considered when greater corrosion resistance or a specific appearance is required.
A key characteristic of the Ventilated Industrial Equipment Cabinet is its dedicated ventilation structure. The visible front section incorporates multiple rows of ventilation openings that allow air to move through the enclosure while maintaining a protective metal barrier around the enclosed area. This design is particularly useful when the equipment installed inside the cabinet requires improved airflow. Rather than using a completely sealed metal box, the Ventilated Industrial Equipment Cabinet can be configured with strategically positioned ventilation openings based on the customer's airflow requirements. The size, quantity, shape, and location of ventilation holes can be adjusted during sheet metal production. This allows the enclosure design to balance ventilation performance with protection, appearance, and structural strength.
The Ventilated Industrial Equipment Cabinet also features a practical front-access configuration. The front door provides convenient access for installation, inspection, maintenance, and equipment replacement without requiring the entire enclosure to be removed from its installation position. A locking mechanism is integrated into the front access area, helping restrict unauthorized access to the enclosed space. Depending on project requirements, the locking system can be replaced with different mechanical locking solutions. The door can also be designed with different opening directions, hinges, handles, sealing structures, and reinforcement features. For projects that require frequent maintenance, the front-access structure of the Ventilated Industrial Equipment Cabinet can significantly improve operational convenience.
Industrial Equipment Cabinet Structure
The Ventilated Industrial Equipment Cabinet uses a rigid sheet metal body as its primary structural frame. The main cabinet panels form the enclosure's left, right, rear, top, and bottom sections, creating a stable housing structure for the customer's equipment. Sheet metal is cut to the required dimensions before being processed through precision bending and forming operations. Folded edges can be incorporated into the panels to improve rigidity and reduce deformation during transportation or everyday use. The corners are carefully connected and finished to create a clean external appearance. Depending on the application, the body of the Ventilated Industrial Equipment Cabinet can be produced from different grades and thicknesses of metal, allowing the overall strength and weight to be adjusted according to project requirements.
The front section of the Ventilated Industrial Equipment Cabinet incorporates a dedicated access door structure. The door is formed from sheet metal and positioned on hinges to provide convenient access to the enclosed space. The illustrated design uses a protruding front-door configuration, creating additional clearance and providing space for ventilation openings on the door panel. The ventilation pattern consists of repeated perforated openings arranged in organized rows, giving the Ventilated Industrial Equipment Cabinet a balanced appearance while supporting airflow. The ventilation openings can be redesigned according to customer requirements, including different hole shapes, patterns, opening percentages, and positions. The front door also incorporates a mechanical lock, while optional handles, hinges, seals, reinforcement plates, and other accessories can be added according to the application.
The upper and lower structures of the Ventilated Industrial Equipment Cabinet are designed to support the overall stability and protection of the enclosure. The top cover extends over the main cabinet body and creates a finished upper surface, while the bottom structure can incorporate a reinforced base for floor installation. The base can be customized with mounting holes, plinths, adjustable feet, casters, or other support structures. Cable entry openings can also be incorporated into the bottom, rear, side, or other designated areas when required. Inside the Ventilated Industrial Equipment Cabinet, optional mounting plates, rails, shelves, brackets, dividers, and reinforcement structures can be added according to the customer's equipment layout. These internal structures are customizable and can be manufactured as part of the metal enclosure when required.
The Ventilated Industrial Equipment Cabinet is designed with customization in mind, allowing the overall structure to be modified for different equipment sizes and installation environments. External dimensions, door proportions, panel thickness, ventilation layout, locking system, mounting points, cable openings, surface finish, and assembly method can all be developed according to project requirements. A typical custom dimension can be specified as 650 (L) * 550 (W) * 1850 (H) mm, while other dimensions can be produced based on customer drawings and equipment requirements. The Ventilated Industrial Equipment Cabinet can therefore serve as a standardized product platform or a fully customized OEM enclosure, giving equipment manufacturers, system integrators, distributors, and industrial customers greater flexibility in developing their own enclosure solutions.
