Mobile 19-Inch Network Rack Cabinet | Youlian

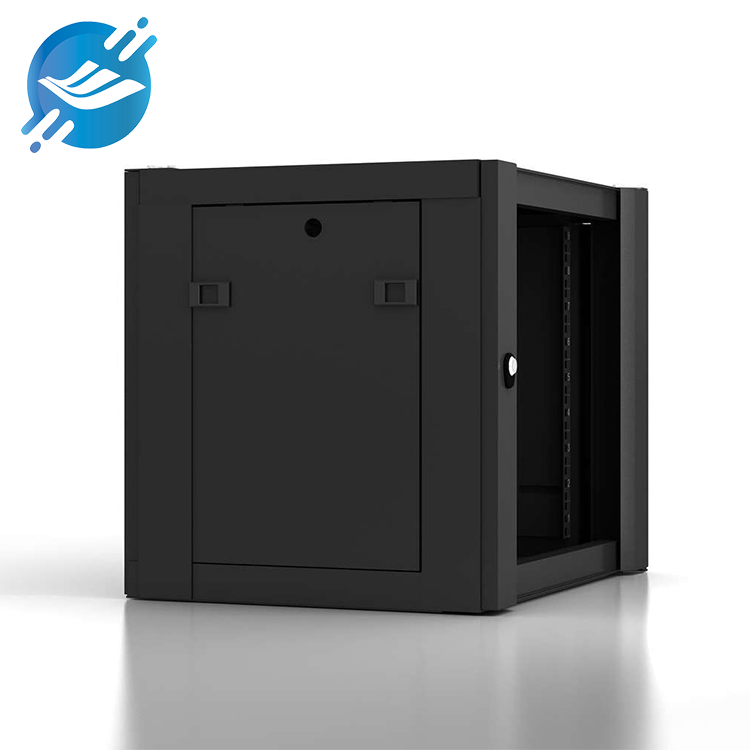

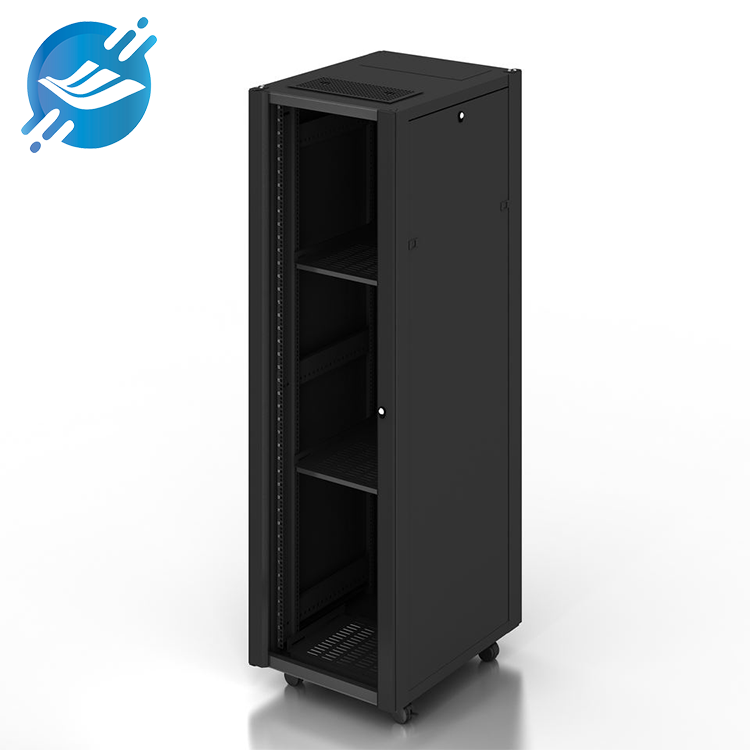

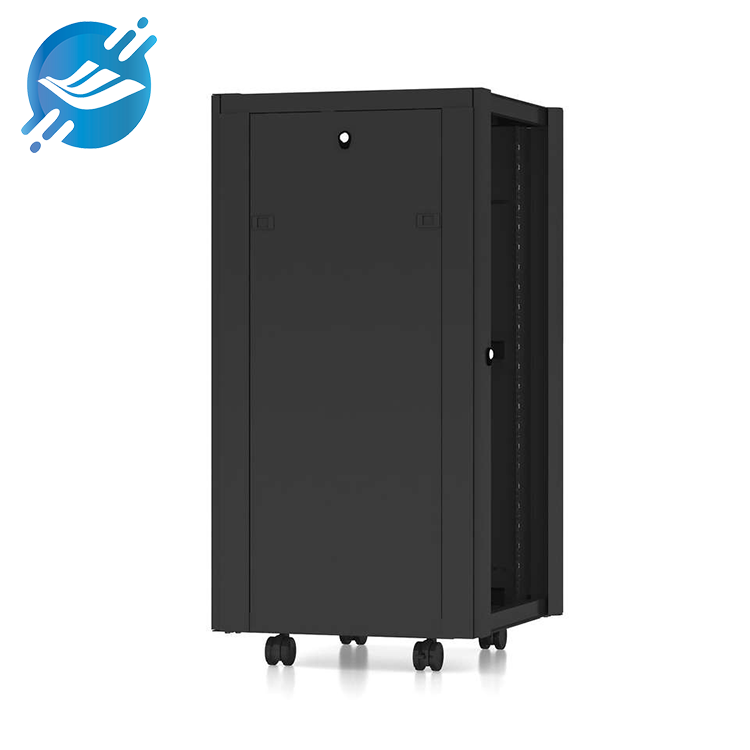

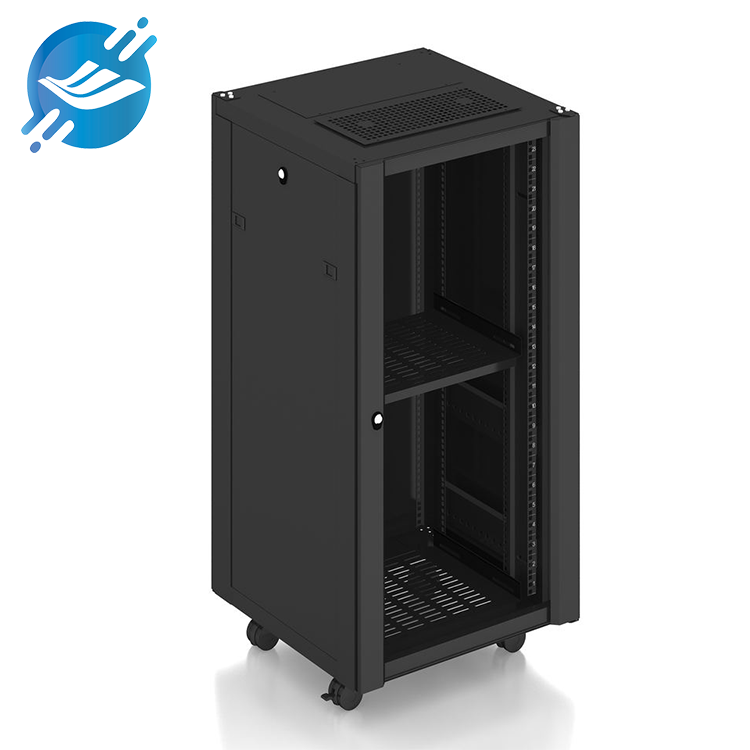

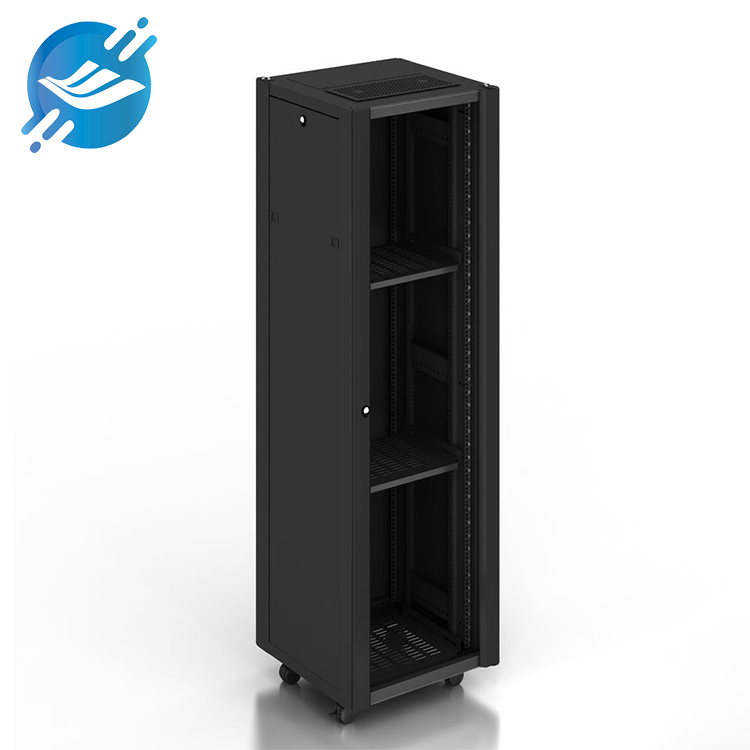

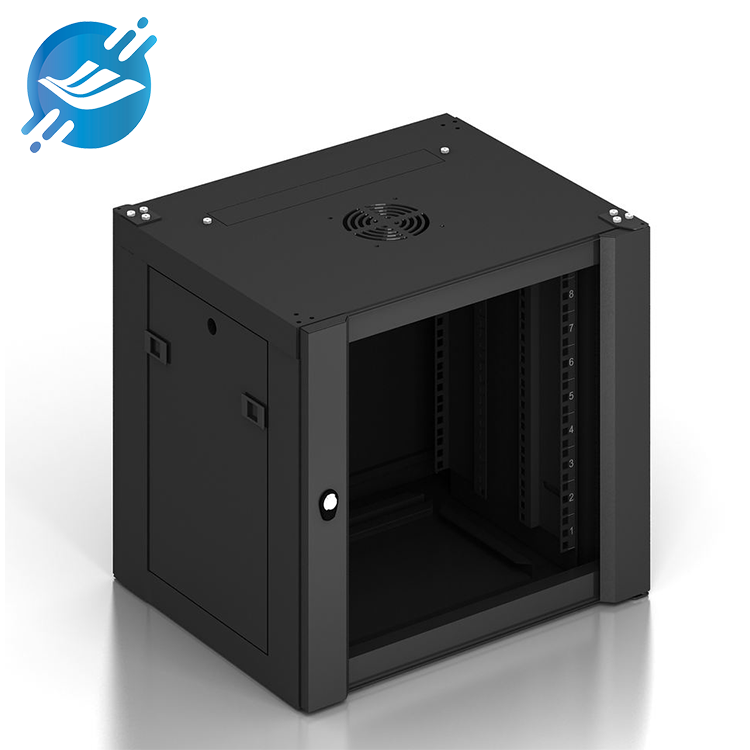

Network Rack Cabinet Pictures
Network Rack Cabinet Parameters
| Place of Origin: | Guangdong, China |
| Product name： | Mobile 19-Inch Network Rack Cabinet |
| Company name: | Youlian |
| Model Number: | YL0002567 |
| Material: | Cold Rolled Steel |
| Surface Treatment: | Electrostatic Powder Coating |
| Standard Color: | Black / Custom RAL Color |
| Rack Standard: | 19-Inch Equipment Mounting |
| Structure: | Floor Standing / Mobile |
| Door Type: | Front Open Access / Custom Door |
| Side Panels: | Removable Side Panels |
| Top Structure: | Ventilated Top Panel |
| Internal Mounting: | Vertical Rack Rails |
| Shelves: | Adjustable Metal Shelves |
| Base: | Heavy-Duty Caster Wheels |
| Assembly: | Knock-Down / Fully Assembled |
| Dimension: | Customizable According to Requirements |
| Weight: | Customizable According to Configuration |
| Application: | Network Equipment, Communication Equipment, Industrial Equipment, IT Equipment |
| Customization: | Size, Rack Rails, Shelves, Ventilation, Doors, Panels, Casters and Accessories |
| MOQ: | 100 pcs |
Network Rack Cabinet Features
The Mobile 19-Inch Network Rack Cabinet is designed as a flexible metal enclosure for customers who need a combination of equipment organization, physical protection, ventilation, and convenient mobility. The cabinet shown in the image features a tall vertical structure with front rack mounting rails, internal shelves, removable side panels, a ventilated top section, and caster wheels. Instead of being limited to a fixed standard configuration, the Mobile 19-Inch Network Rack Cabinet can be customized according to the dimensions and installation requirements of the customer's equipment. External width, depth, height, panel thickness, rack mounting position, shelf arrangement, access configuration, ventilation pattern, and base structure can all be adjusted during the design and manufacturing process.
The Mobile 19-Inch Network Rack Cabinet incorporates a 19-inch equipment mounting concept, making it suitable for applications where rack-mountable equipment needs to be organized within a dedicated metal enclosure. Vertical mounting rails can be positioned inside the cabinet according to the required equipment installation height and internal clearance. The rack rails can be manufactured with suitable mounting hole patterns and can be adjusted according to the customer's equipment specifications. Additional horizontal shelves are also available for equipment that does not use a standard rack-mounting format. The Mobile 19-Inch Network Rack Cabinet can therefore accommodate a mixture of rack-mounted and shelf-mounted equipment while maintaining a clean and organized internal structure.
Ventilation is another important feature of the Mobile 19-Inch Network Rack Cabinet. The top panel shown in the image incorporates a perforated ventilation section that can help promote airflow through the enclosure. Additional ventilation openings can be designed into the side panels, rear panel, door, bottom, or other appropriate areas according to the customer's requirements. Ventilation patterns do not have to follow the exact configuration shown in the image. The Mobile 19-Inch Network Rack Cabinet can be manufactured with different perforation shapes, hole sizes, opening densities, and positions. Where required, the cabinet structure can also accommodate mounting provisions for customer-specified ventilation accessories, while the metal outer case itself remains the primary manufactured enclosure.
Network Rack Cabinet Structure
The Mobile 19-Inch Network Rack Cabinet uses a rigid sheet metal frame as its primary structural body. The main frame consists of vertical support sections, side panels, rear structure, top panel, bottom structure, and front access area. The sheet metal panels can be formed with folded edges to improve rigidity and maintain consistent alignment during assembly. The top section includes a ventilated metal panel in the illustrated configuration, while the overall top structure can be redesigned according to the customer's requirements. Different panel thicknesses and reinforcement structures can be selected for the Mobile 19-Inch Network Rack Cabinet according to the overall dimensions and expected equipment load.
The internal structure of the Mobile 19-Inch Network Rack Cabinet is centered around vertical rack mounting rails and adjustable equipment support components. The front rack rails provide mounting positions for compatible 19-inch equipment, while horizontal shelves provide additional support for non-rack-mounted products. Shelf quantity, height, depth, and mounting method can all be customized. Additional brackets, mounting plates, dividers, cable routing supports, and reinforcement members can also be incorporated when necessary. The Mobile 19-Inch Network Rack Cabinet can therefore be configured with a completely customized internal layout while keeping the outer enclosure clean and professional.
The side and access structures of the Mobile 19-Inch Network Rack Cabinet are designed to support convenient installation and maintenance. The removable side panels shown in the image allow technicians to access the internal area from the side, while the front opening provides direct access to the rack rails and shelves. Depending on the project, the Mobile 19-Inch Network Rack Cabinet can be manufactured with front doors, rear doors, removable panels, hinged panels, perforated panels, or transparent viewing sections. Locking systems, handles, hinges, ventilation openings, and custom cutouts can be positioned according to customer requirements. Cable entry openings can also be incorporated into the rear, side, top, or bottom panels.
The Mobile 19-Inch Network Rack Cabinet uses a mobile base structure with caster wheels, providing convenient movement across suitable indoor surfaces. The base can be redesigned with locking casters, fixed feet, adjustable leveling feet, plinths, or other support solutions depending on the application. The complete Mobile 19-Inch Network Rack Cabinet can also be customized in external dimensions, such as 600 (L) * 600 (W) * 1200 (H) mm, although the final dimensions should be determined according to the customer's equipment and installation requirements. From rack rails and shelves to ventilation, access panels, mounting holes, surface treatment, and mobility components, the Mobile 19-Inch Network Rack Cabinet can be manufactured as a complete customized sheet metal outer enclosure for OEM and industrial equipment applications.
