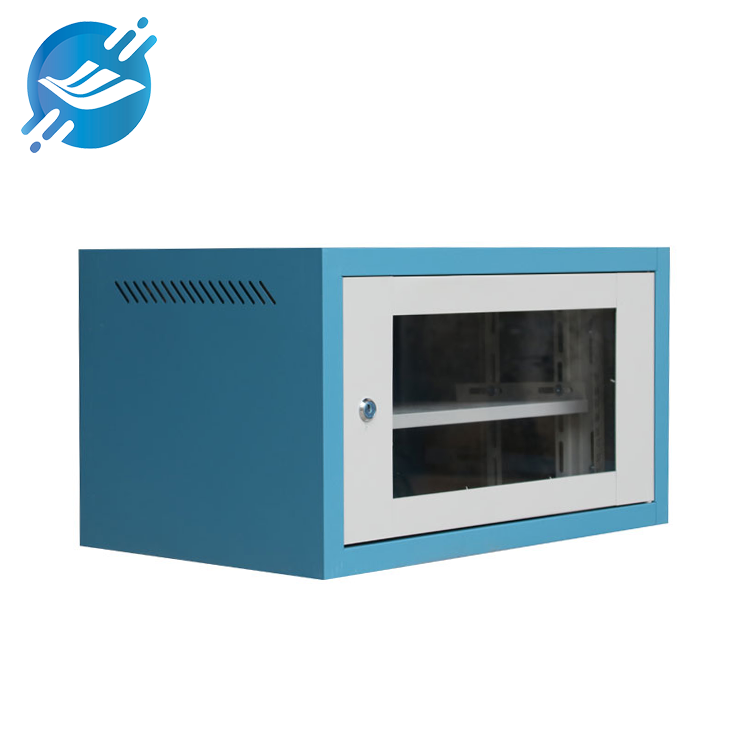

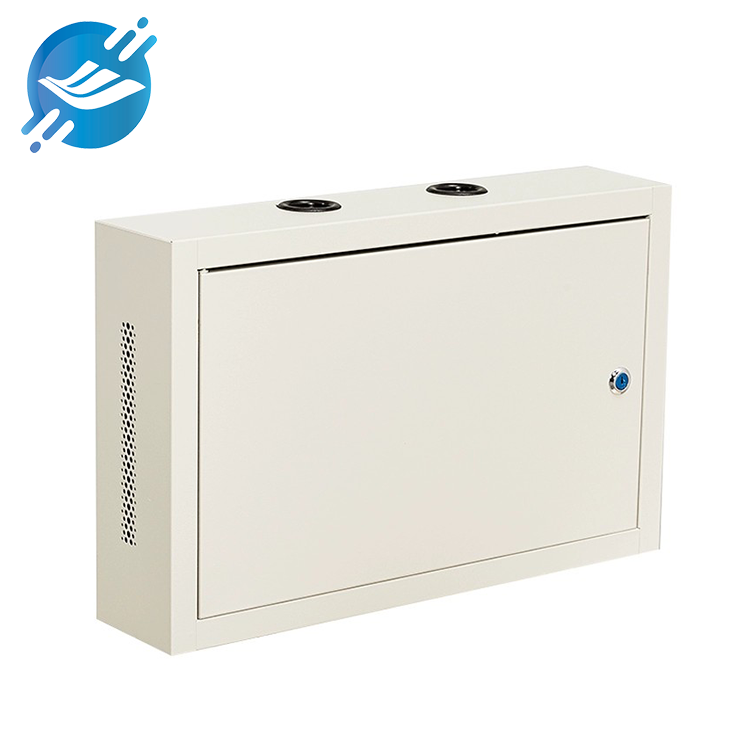

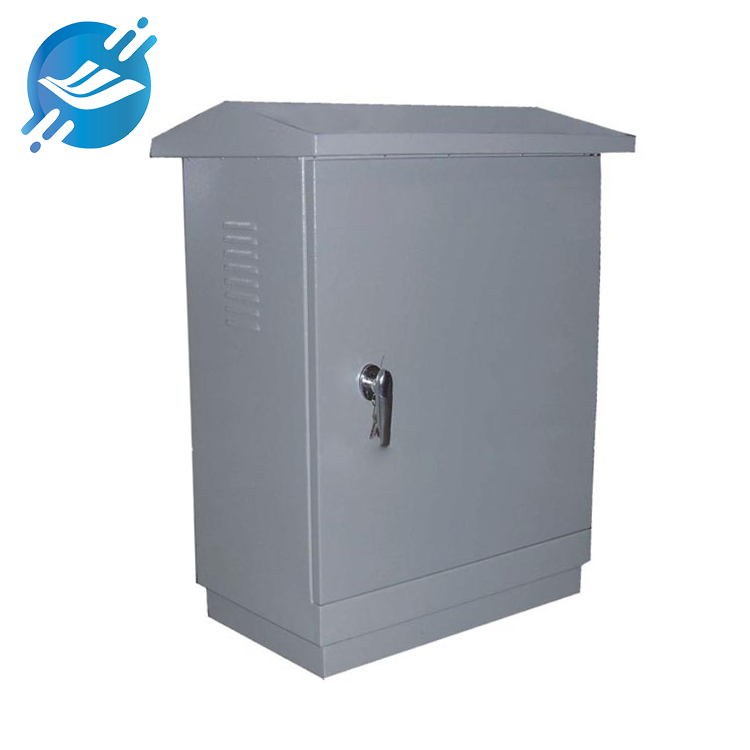

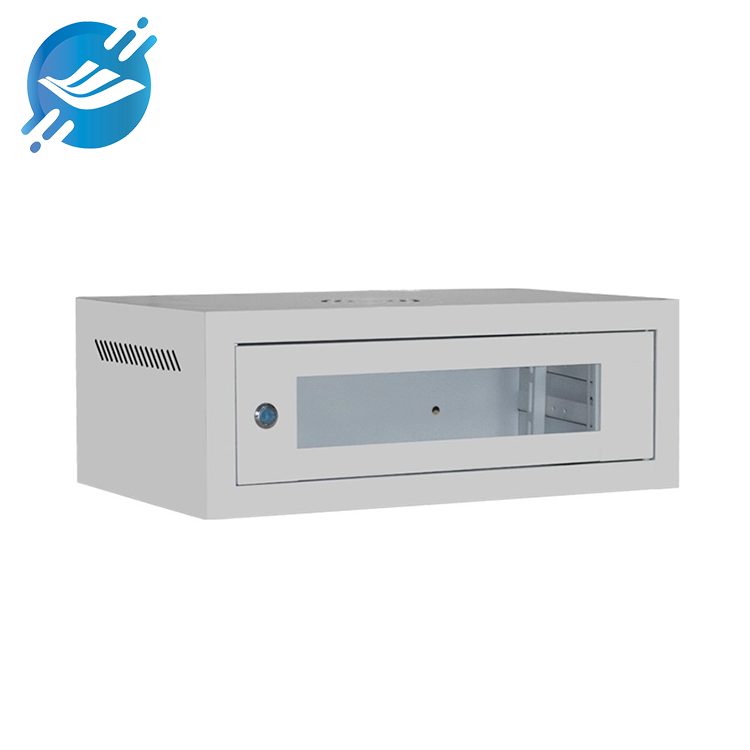

Network Cabinet Product Pictures
Network Cabinet Product parameters
| Place of Origin: | Guangdong, China |
| Product name： | Ventilated Network Enclosure Server Cabinet |
| Company name: | Youlian |
| Model Number: | YL0002210 |
| Size: | 400 (D) * 600 (W) * 300 (H) mm / customizable |
| Material: | Cold-rolled steel |
| Weight: | Approx. 8.5kg depends on materails and sizes |
| Color: | Customialbe |
| Surface Treatment: | Static powder coating, anti-scratch and rust-resistant |
| Mounting Type: | Wall-mounted with rear mounting holes or brackets |
| Ventilation: | Front air vents, top fan slot for optional fan installation |
| Door Option: | Lockable front door or open-face version available |
| Application: | Networking equipment, CCTV DVR/NVR, routers, mini servers, and patch panels |
| MOQ | 100 pcs |
Network Cabinet Product Features
The wall-mounted server enclosure cabinet is an essential solution for organizing and protecting critical networking and IT equipment in compact installations. Built with precision sheet metal fabrication, it offers a professional-grade housing for small to medium-sized server setups, including routers, switches, DVRs, NVRs, patch panels, and other electronic components.
Constructed using cold-rolled SPCC steel with a minimum thickness of 1.2 mm, this server cabinet provides excellent structural strength and resistance to bending. It ensures long-term stability even when loaded with heavy equipment. The enclosure is treated with a matte or textured powder coating to prevent corrosion and ensure a clean, professional appearance suitable for modern office and commercial environments.

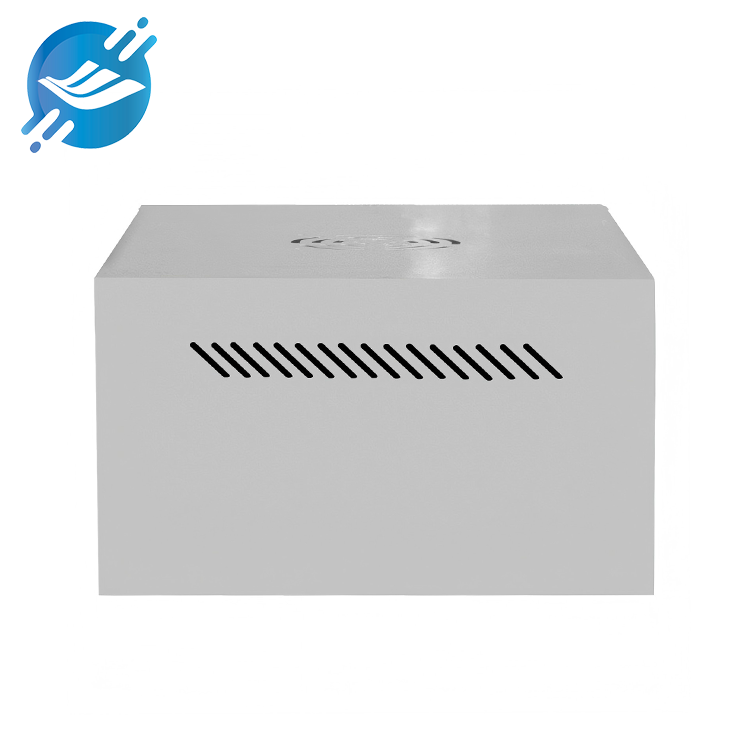

One of the defining features of this cabinet is its smart ventilation design. The front face is equipped with a series of diagonally arranged louvered vents to promote passive airflow. This airflow prevents heat buildup, especially in enclosed spaces where heat-sensitive devices like DVRs and switches are installed. Additionally, the top panel includes pre-cut fan mounting slots for users who want to add active ventilation through exhaust fans, enhancing thermal control for continuous operation of IT equipment.
This server cabinet is particularly advantageous for locations with limited space. Its wall-mounted design frees up valuable floor area while maintaining accessibility. Rear mounting holes or optional L-brackets allow for secure wall installation using standard wall anchors or expansion bolts. This makes it ideal for deployment in offices, security rooms, retail backrooms, or IDF/MDF wiring closets.
Network Cabinet Product structure
This wall-mounted server cabinet is constructed from a single sheet of cold-rolled steel, precision-cut and folded using CNC equipment to form a box with exceptional rigidity. The enclosure’s side panels are welded or riveted to the base and top plates, forming a strong cuboidal frame. Structural reinforcements inside the cabinet, such as internal rails or welded brackets, ensure the cabinet does not deform under equipment weight or wall vibrations. The powder coating is applied evenly across all surfaces using electrostatic spraying and then cured at high temperature, producing a hard, uniform protective layer.
The ventilation system is a key structural aspect. The front panel incorporates laser-cut louvered vents arranged in a diagonal pattern. This placement optimizes passive airflow and enhances the aesthetic appearance of the cabinet. On the top panel, a circular fan cutout allows for optional fan installation, with bolt holes provided for easy mounting. Additional passive vent slots may be added on the sides or rear for greater airflow if higher heat loads are anticipated. These structural vents are precisely designed to maintain airflow while minimizing dust entry and EMI/RFI exposure.
Internally, the cabinet supports a rackmount layout using L-type mounting rails or fixed shelves. These rails are set into welded brackets and positioned according to standard 19-inch equipment spacing or modified to fit non-standard layouts. Cable entry is provided through knockout holes or pre-punched grommeted slots at the rear or bottom, depending on project specifications. Shelves, cage nuts, screws, or tray brackets can be added as per the user’s request. Additional structure can include rear support flanges or grounding studs to enhance electrical safety and integrity.
For wall mounting, the rear panel of the cabinet includes reinforced mounting holes sized to accommodate expansion bolts or heavy-duty screws. Optional wall brackets can be welded or bolted to the back for an easier, offset installation. All mounting points are strengthened with extra folds or reinforcement ribs to resist long-term stress. The overall structural design is both robust and lightweight, combining ease of installation with professional-grade performance. From airflow management to component housing, every structural element has been optimized to deliver value in real-world applications.
