Outdoor Energy Storage Cabinet | Youlian

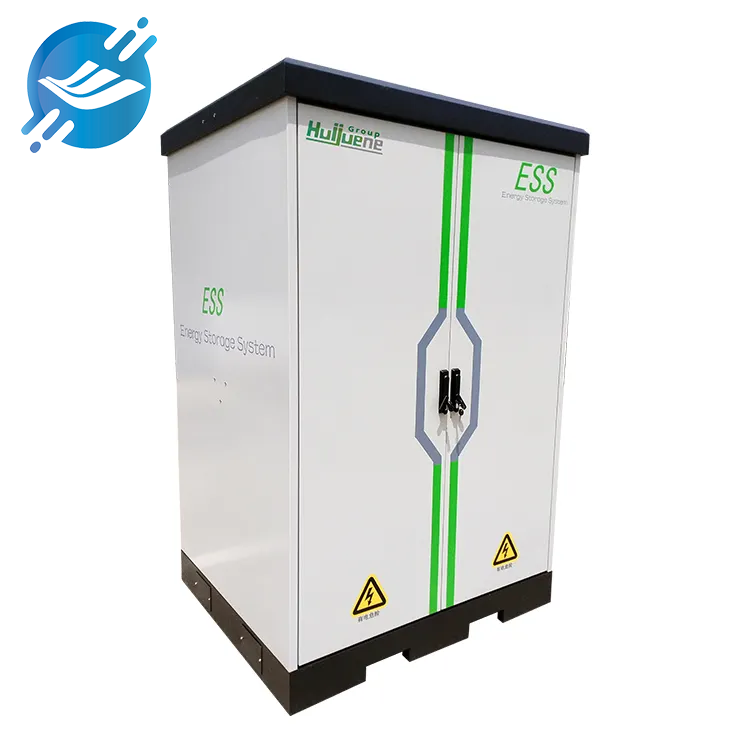

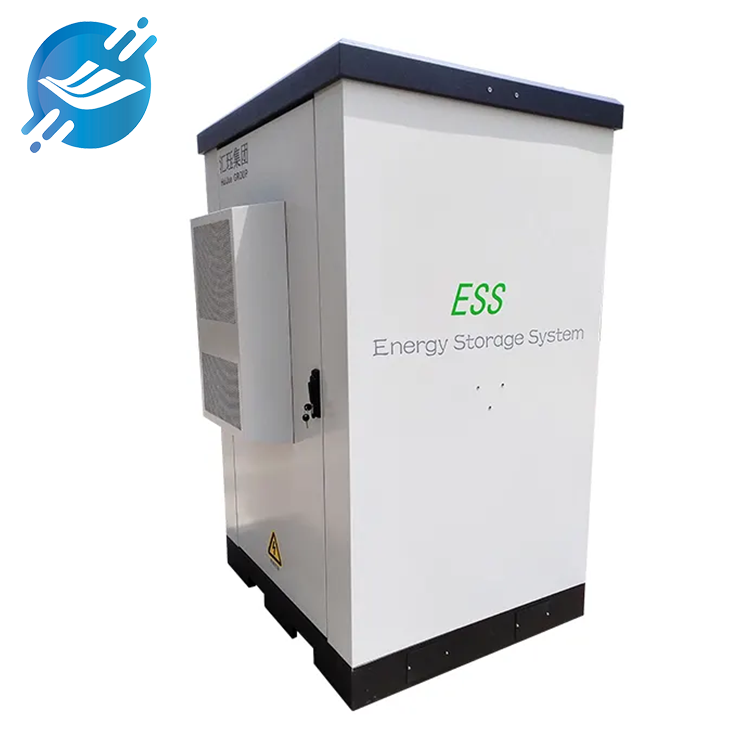

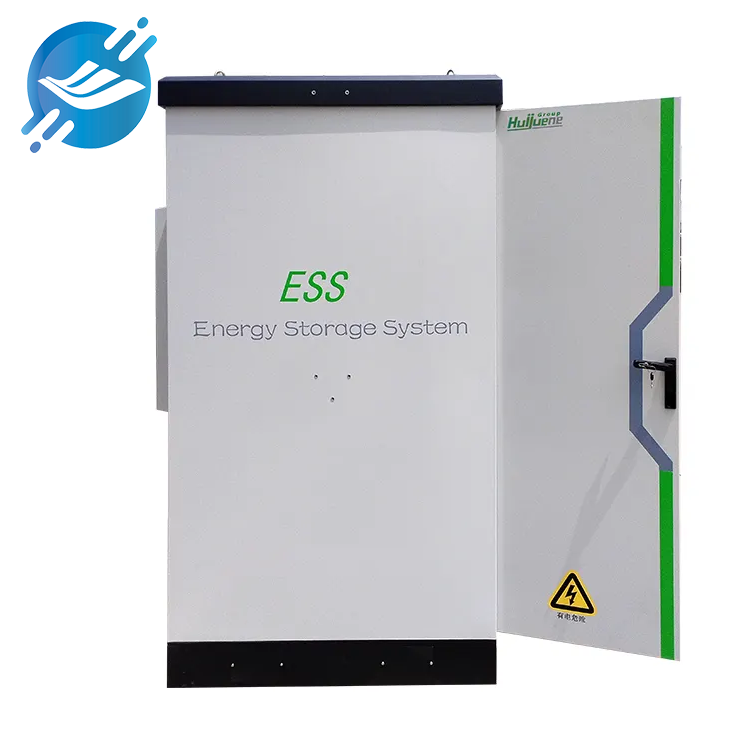

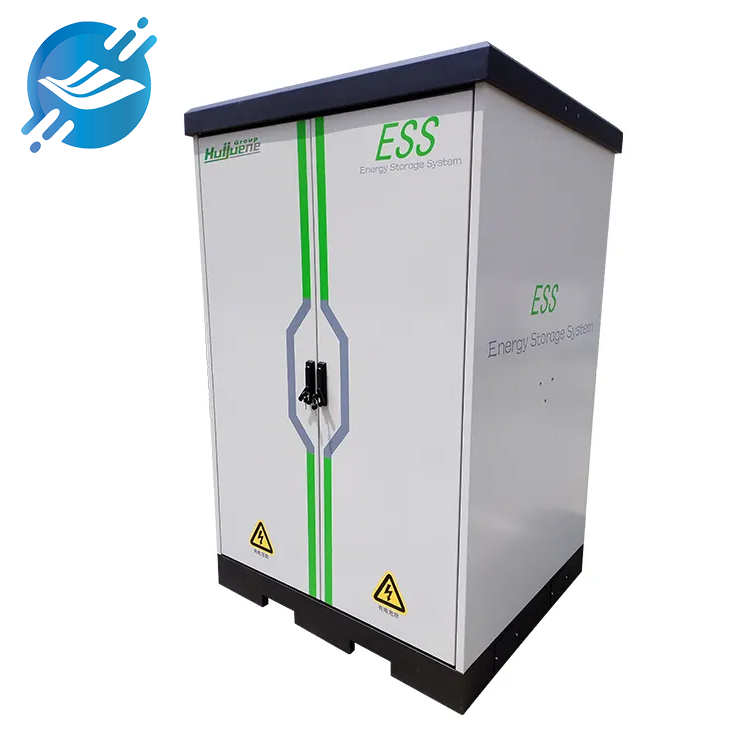

Outdoor Energy Storage Cabinet provides reliable protection for battery and inverter systems. Its durable steel body and weatherproof design make it an ideal solution for solar, wind, and off-grid power storage applications.

Send email to us

Product Detail

Product Tags

Metal PC Case Product Pictures

Metal PC Case Product Parameters

Place of Origin:	Guangdong, China
Product name：	Outdoor Energy Storage Cabinet
Company name:	Youlian
Model Number:	YL0002307
Size:	1200 (L) * 800 (W) * 1600 (H) mm
Material:	Galvanized steel with powder-coated finish
Weight:	Approx. 150 kg
Protection Rating:	IP54 / IP65 (optional)
Cooling System:	Natural ventilation or optional forced air cooling
Door Type:	Dual front doors with secure locking handle
Color:	White with green detailing (custom colors available)
Assembly:	Pre-assembled body with detachable roof and base cover
Application:	Solar energy storage, wind energy, off-grid backup, UPS battery housing
MOQ:	100 pcs

Metal PC Case Product Features

The Outdoor Energy Storage Cabinet is designed to provide maximum security and efficiency for modern battery storage solutions. Constructed from heavy-duty galvanized steel, this cabinet ensures superior strength and corrosion resistance, even in harsh outdoor environments. Its powder-coated surface not only enhances its resistance to moisture and UV damage but also gives the cabinet a sleek and professional appearance, making it suitable for both commercial and residential energy projects.

With a focus on flexibility and protection, the Outdoor Energy Storage Cabinet offers ample space for batteries, inverters, charge controllers, and other essential components. Its spacious interior is organized to support neat cable routing and easy component installation. Adjustable mounting brackets and removable panels enable installers to tailor the internal layout, ensuring optimal airflow and convenient access to all equipment during routine servicing.

Weather resistance is a key advantage of the Outdoor Energy Storage Cabinet. Featuring a sealed construction and protective roof overhang, it provides a secure environment for electrical storage systems in a wide range of climates. The cabinet’s IP54/IP65 rating offers effective protection against dust and water ingress, safeguarding sensitive electronics from environmental threats. Optional cooling fans or heat exchangers can be integrated for applications that demand enhanced thermal management, maintaining the ideal operating temperature for high-performance batteries.

The Outdoor Energy Storage Cabinet prioritizes safety, incorporating grounding points, reinforced hinges, and warning labels to ensure proper handling and compliance with electrical standards. The lockable double-door design prevents unauthorized access, while its ergonomic handles allow smooth operation. Rounded edges and polished surfaces reduce the risk of accidental injury during maintenance or inspection, further demonstrating its user-focused design.

Metal PC Case Product Structure

The Outdoor Energy Storage Cabinet is engineered with a robust frame designed to withstand outdoor challenges. Its main body is formed from thick galvanized steel panels, precision-cut and assembled with corrosion-resistant fasteners. The reinforced roof, equipped with an overhanging edge, diverts rainwater away from the cabinet’s doors, reducing the risk of leaks or damage. The base features integrated lifting slots, allowing easy transportation and positioning during installation.

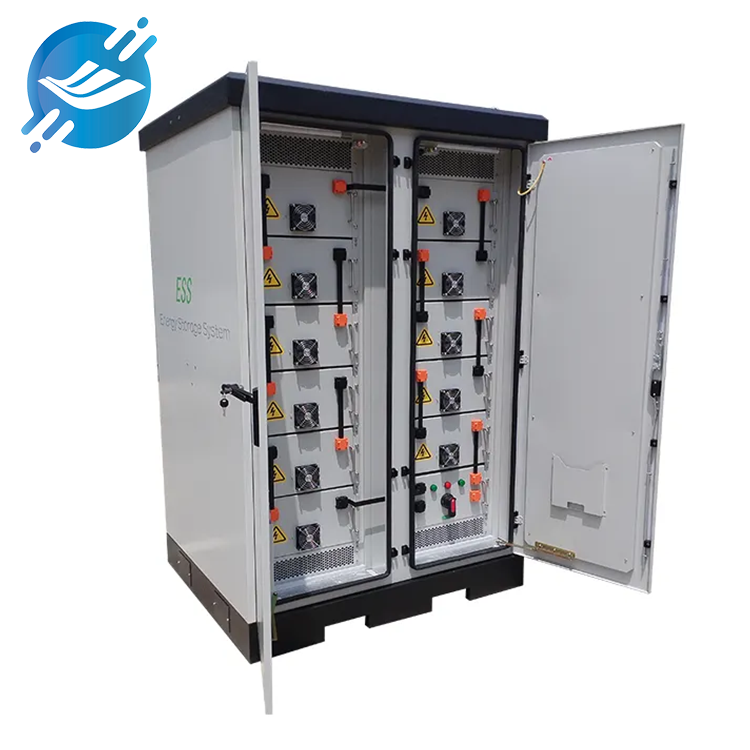

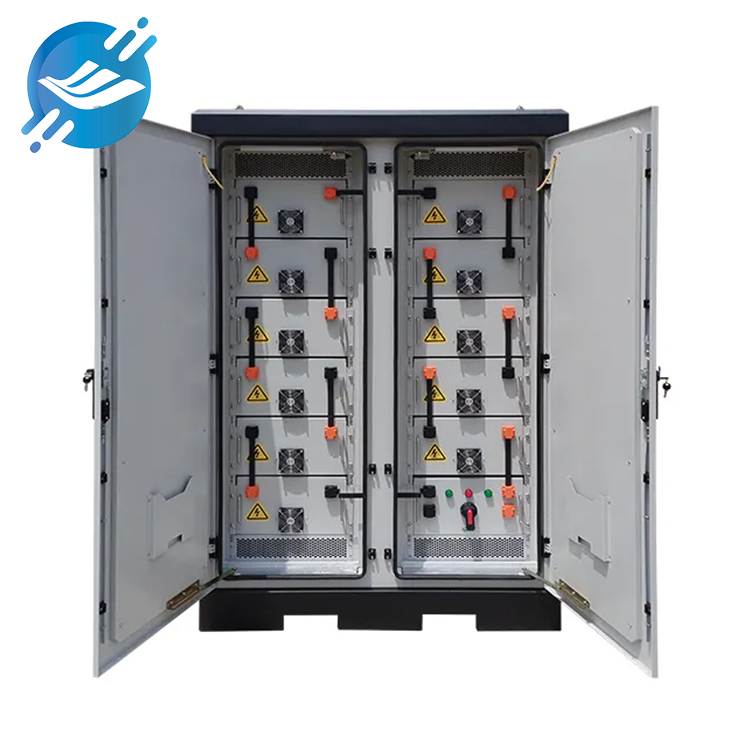

Inside the Outdoor Energy Storage Cabinet, an adaptable support framework provides mounting options for batteries, controllers, and other components. The internal structure includes cable management channels, adjustable brackets, and grounding terminals to simplify wiring and keep circuits organized. A removable back panel or sliding trays can be added to improve accessibility during equipment replacement or upgrades, ensuring the cabinet remains easy to maintain throughout its service life.

The cabinet’s door system is designed for durability and user convenience. Its double doors open wide to allow full access to the interior, while strong hinges and gasket seals provide stability and resistance to dust and moisture. A secure locking handle with an optional padlock feature ensures that only authorized personnel can access the stored equipment, making it suitable for both public installations and private premises.

Finally, the surface finish of the Outdoor Energy Storage Cabinet is carefully treated to enhance longevity and appearance. After thorough cleaning and phosphating, all panels receive an electrostatic powder coating, forming a smooth, weather-resistant barrier against corrosion, fading, and scratches. This finishing process allows the cabinet to endure long-term exposure to sunlight, rain, and industrial atmospheres, ensuring dependable protection for energy storage systems and maintaining its attractive look over years of service.

Youlian Production Process

Youlian Factory strength

Dongguan Youlian Display Technology Co., Ltd. is a factory covering an area of more than 30,000 square meters, with a production scale of 8,000 sets/month. We have more than 100 professional and technical personnel who can provide design drawings and accept ODM/OEM customization services. The production time for samples is 7 days, and for bulk goods it takes 35 days, depending on the order quantity. We have a strict quality management system and strictly control every production link. Our factory is located at No. 15 Chitian East Road, Baishigang Village, Changping Town, Dongguan City, Guangdong Province, China.

Youlian Mechanical Equipment

Youlian Certificate

We are proud to have achieved ISO9001/14001/45001 international quality and environmental management and occupational health and safety system certification. Our company has been recognized as a national quality service credence AAA enterprise and has been awarded the title of trustworthy enterprise, quality and integrity enterprise, and more.

Youlian Transaction details

We offer various trade terms to accommodate different customer requirements. These include EXW (Ex Works), FOB (Free On Board), CFR (Cost and Freight), and CIF (Cost, Insurance, and Freight). Our preferred payment method is a 40% downpayment, with the balance paid before shipment. Please note that if an order amount is less than $10,000 (EXW price, excluding shipping fee), the bank charges must be covered by your company. Our packaging consists of plastic bags with pearl-cotton protection, packed in cartons and sealed with adhesive tape. Delivery time for samples is approximately 7 days, while bulk orders may take up to 35 days, depending on the quantity. Our designated port is ShenZhen. For customization, we offer silk screen printing for your logo. Settlement currency can be either USD or CNY.

Youlian Customer distribution map

Mainly distributed in European and American countries, such as the United States, Germany, Canada, France, the United Kingdom, Chile and other countries have our customer groups.
