Metal Control Box Enclosure | Youlian

Engineered from durable sheet metal and precision-cut for optimal performance, this custom black control box is ideal for housing electronic access systems, network modules, and industrial control units.

Send email to us

Product Detail

Product Tags

Storage Cabinet Product pictures

Storage Cabinet Product parameters

Place of Origin:	Guangdong, China
Product name：	Metal Control Box Enclosure
Company name:	Youlian
Model Number:	YL0002249
Dimensions (Typical):	180 (D) * 400 (W) * 160 (H) mm (customizable)
Weight:	Approx. 4.2 kg
Material:	Cold-rolled steel (CRS)
Finish:	Black powder-coated, matte texture
Mounting:	Flange mount with screw holes
Cutouts:	Multiple interface ports for LAN, power, reset, I/O, and signal
Processing Method:	Laser cutting + CNC bending + powder coating
Protection Level:	Indoor-use rated, IP20 (optional upgrade)
Customization:	Cutout shape, size, label marking, logo engraving
Application:	Access control, industrial automation, security systems
MOQ:	100 pcs

Storage Cabinet Product Features

This black powder-coated sheet metal control box is purpose-built to support various electronic system integrations in access control and security installations. Crafted with cold-rolled steel for its strength, formability, and smooth surface quality, the enclosure is further finished with a matte black powder coating that enhances durability, corrosion resistance, and overall aesthetics. Designed with precision-cut holes for LAN, power, and digital interfaces, the layout supports organized and accessible wiring while maintaining a compact footprint for efficient installation.

The metal control box structure includes multiple labeled cutouts for ports such as LAN, CAN, AC220V, alarm signal, and more, offering plug-and-play convenience for system integrators. Each slot is carefully positioned based on real-world wiring and thermal management requirements, ensuring optimal spacing and access. A built-in reset port and visual markings for indicators (LED, system status, alarm) further enhance usability during operation and maintenance.

This metal control box prioritizes both protection and modularity. The walls are reinforced with CNC-bent edges and internal support tabs, making the box sturdy enough to withstand vibration and frequent servicing. The powder coating not only contributes to a scratch-resistant surface but also provides electrical insulation—an important consideration for densely packed internal PCBs and I/O terminals. For mounting, extended flanges with pre-drilled holes allow fast and secure installation on flat surfaces such as walls, cabinets, or machinery panels.

Suitable for a wide variety of applications, from smart building infrastructure to factory automation controls, this metal control box enclosure is especially popular among OEMs, system integrators, and security equipment manufacturers. Whether it’s used for a LAN-based access control system or housing low-voltage relay boards, the enclosure offers flexibility and robustness for customized electronics protection. Additionally, all cutouts and labels can be adjusted per customer specifications, with options for silk-screen printing or laser engraving for professional branding and identification.

Storage Cabinet product structure

The main structure of metal control box is formed from a single piece of cold-rolled steel sheet, precisely cut and bent by CNC machinery. This ensures consistency in dimension and strength while minimizing the need for welding. The flanges are integrated as part of the base shell, allowing for rigid and secure mounting against panels or inside larger systems. The box also includes a flat removable lid or panel—secured via fasteners or sliding tabs—allowing for easy internal access during setup or maintenance.

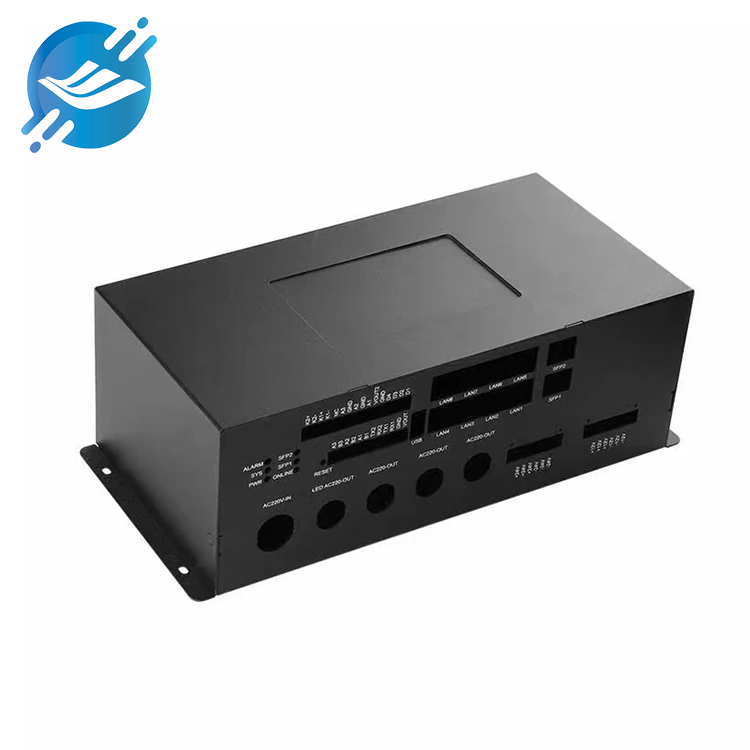

On the front-facing panel of metal control box, multiple pre-machined holes serve as access ports for various connectors. These include round holes for AC220V input and LED output cables, rectangular slots for LAN and CAN interfaces, and small matrix-style pinholes for data signal or GPIO connections. The port area is labeled with white screen-printed text to assist technicians during installation. The arrangement of these ports has been engineered for convenience, ensuring no overlap or tangling of wires when all components are connected.

The side panels of the metal control box are flat and clean, allowing additional cutouts to be added depending on customer requirements. Inside the enclosure, optional brackets or standoffs can be installed for mounting PCBs, relay boards, or power supplies. Heat dissipation slots or fan cutouts can also be incorporated if active cooling is required for the end-use scenario. Additionally, the box’s interior surfaces are smooth and powder-coated, preventing any accidental short-circuiting due to contact with exposed wires.

The metal control box rear panel may optionally include additional I/O or ventilation depending on customization needs. If the enclosure is used in a system with high-density connections or heat-producing components, vent holes or louvers can be added without compromising structural integrity. Each unit can be fully customized with logo engraving, QR code cutouts, or unique model identifiers, enhancing traceability and branding for manufacturers or integrators.

Youlian Production Process

Youlian Factory strength

Dongguan Youlian Display Technology Co., Ltd. is a factory covering an area of more than 30,000 square meters, with a production scale of 8,000 sets/month. We have more than 100 professional and technical personnel who can provide design drawings and accept ODM/OEM customization services. The production time for samples is 7 days, and for bulk goods it takes 35 days, depending on the order quantity. We have a strict quality management system and strictly control every production link. Our factory is located at No. 15 Chitian East Road, Baishigang Village, Changping Town, Dongguan City, Guangdong Province, China.

Youlian Mechanical Equipment

Youlian Certificate

We are proud to have achieved ISO9001/14001/45001 international quality and environmental management and occupational health and safety system certification. Our company has been recognized as a national quality service credence AAA enterprise and has been awarded the title of trustworthy enterprise, quality and integrity enterprise, and more.

Youlian Transaction details

We offer various trade terms to accommodate different customer requirements. These include EXW (Ex Works), FOB (Free On Board), CFR (Cost and Freight), and CIF (Cost, Insurance, and Freight). Our preferred payment method is a 40% downpayment, with the balance paid before shipment. Please note that if an order amount is less than $10,000 (EXW price, excluding shipping fee), the bank charges must be covered by your company. Our packaging consists of plastic bags with pearl-cotton protection, packed in cartons and sealed with adhesive tape. Delivery time for samples is approximately 7 days, while bulk orders may take up to 35 days, depending on the quantity. Our designated port is ShenZhen. For customization, we offer silk screen printing for your logo. Settlement currency can be either USD or CNY.

Youlian Customer distribution map

Mainly distributed in European and American countries, such as the United States, Germany, Canada, France, the United Kingdom, Chile and other countries have our customer groups.
