Custom Outdoor Wall-Mounted Electric Distribution | Youlian

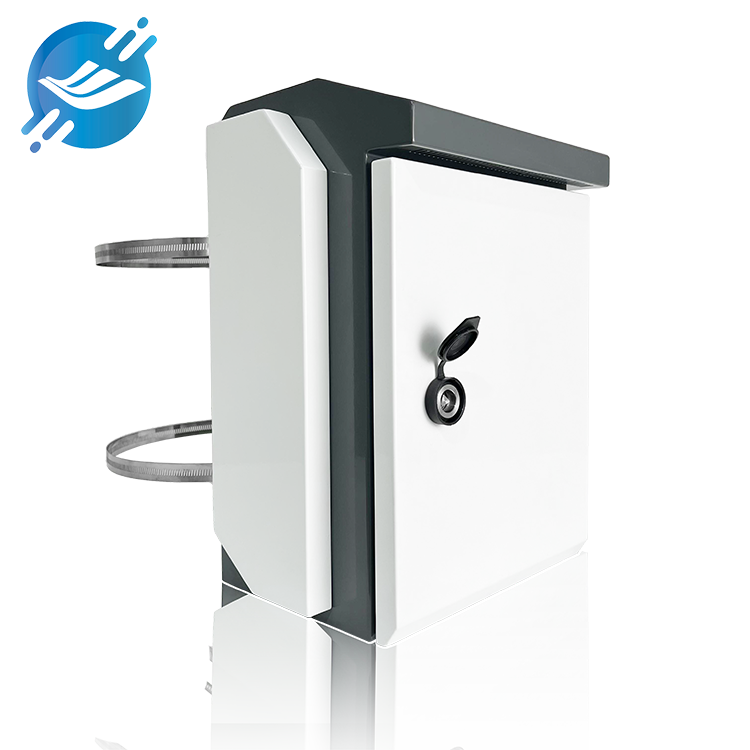

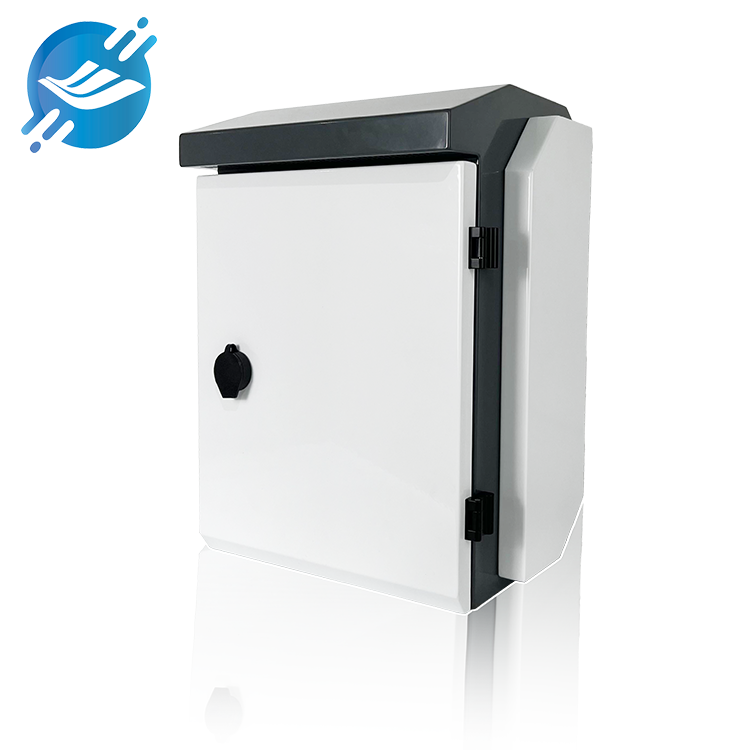

Network Cabinet Product Pictures
Network Cabinet Product parameters
| Place of Origin: | Guangdong, China |
| Product name： | Custom Outdoor Wall-Mounted Electric Distribution |
| Company name: | Youlian |
| Model Number: | YL0002209 |
| Size: | 250 (D) * 200 (W) * 300 (H) mm / customizable |
| Material: | Cold-rolled steel or stainless steel (optional SS304/SS316) |
| Weight: | Approx. 4.2 kg (depending on size & material) |
| Color: | Customizable |
| Surface Treatment: | Outdoor-grade powder coating (standard in white/grey), UV & corrosion resistant |
| Mounting Method: | Stainless steel hoop banding for pole mount / wall mount optional |
| Lock System: | Cam lock with dust cover and key access |
| Ingress Protection: | IP65-rated weatherproof construction |
| Application: | Outdoor electrical distribution, surveillance, telecom, control systems, street lighting control |
| MOQ | 100 pcs |
Network Cabinet Product Features
The custom outdoor wall-mounted pole enclosure is a highly functional and durable solution designed to meet the requirements of outdoor electrical and communication equipment installations. Manufactured using premium-grade sheet metal processes, this enclosure serves as a protective housing that can withstand the rigors of weather exposure, dust, and tampering. It is ideally suited for environments such as roadsides, parks, industrial sites, and commercial facilities where pole-mounted installations are necessary.
Built from cold-rolled steel or stainless steel, the enclosure boasts excellent mechanical strength and resistance to deformation. For environments that demand higher corrosion resistance, stainless steel variants (SS304 or SS316) can be selected. This ensures the enclosure maintains structural integrity and continues to protect sensitive internal components, even in coastal or industrial zones with high humidity or airborne chemicals.
For added security, the front-access door is fitted with a high-quality cam lock system, complete with a rubber dust cover to protect the lock cylinder. This prevents unauthorized access and minimizes the risk of internal damage caused by tampering. The door opens widely to allow comfortable access for technicians during maintenance, and optional features such as document holders, cable glands, or internal brackets can be installed upon request.

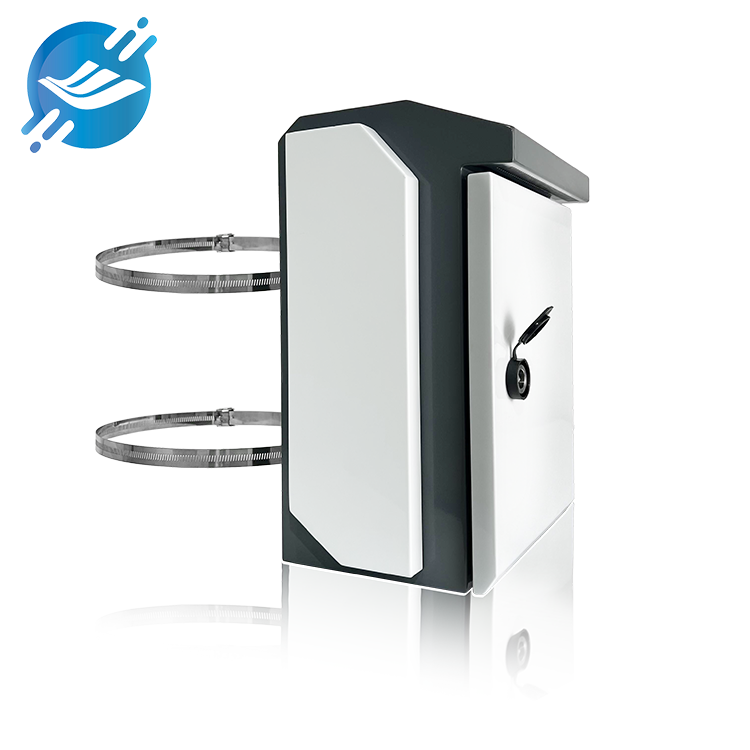

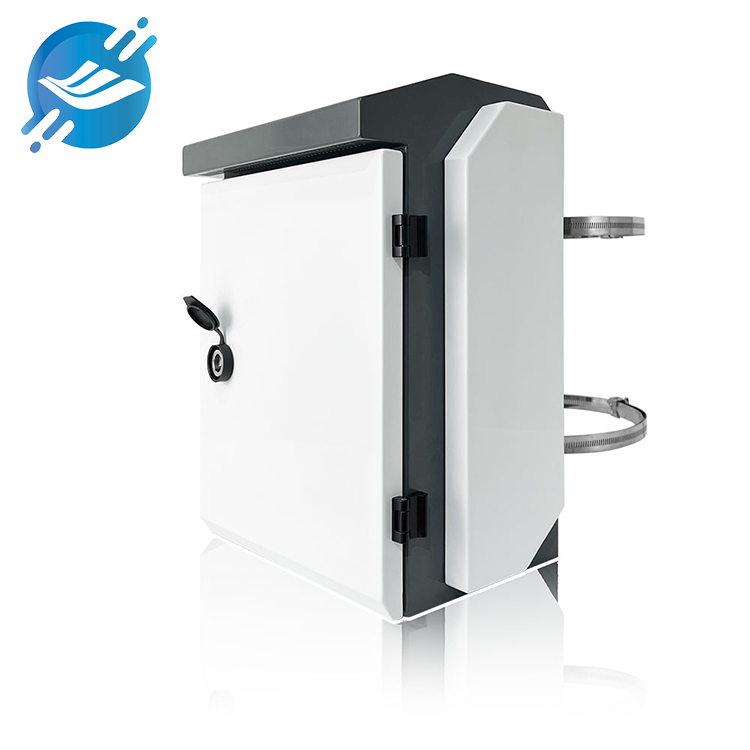

Mounting is another strength of this enclosure. It comes equipped with robust stainless steel mounting hoops designed to wrap securely around poles of varying diameters. This pole-mount configuration is perfect for smart city applications such as traffic control boxes, surveillance camera power supply housings, 4G/5G communication boxes, and lighting control panels. For users who require wall mounting, the same cabinet can be customized with rear mounting holes or external wall brackets.
Network Cabinet Product structure
The structure of the custom pole-mounted outdoor enclosure is meticulously engineered for durability, accessibility, and weather protection. The main body is constructed from a single cold-rolled steel or stainless steel sheet, cut with laser precision and folded into a rigid box structure using CNC press brakes. This ensures both structural strength and dimensional accuracy. The internal sidewalls may include pressed dimples or welded brackets for secure mounting of internal equipment such as backplanes, DIN rails, or control panels.

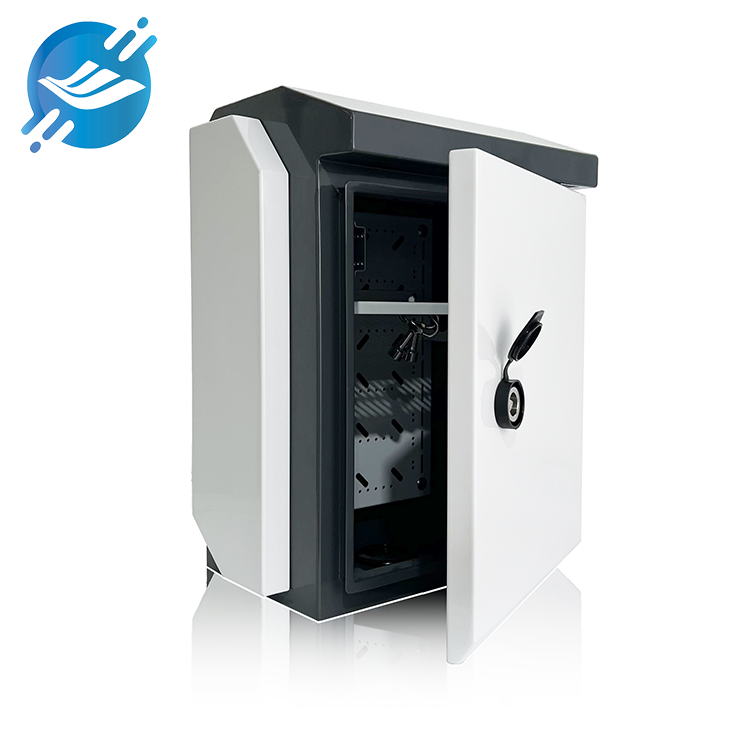

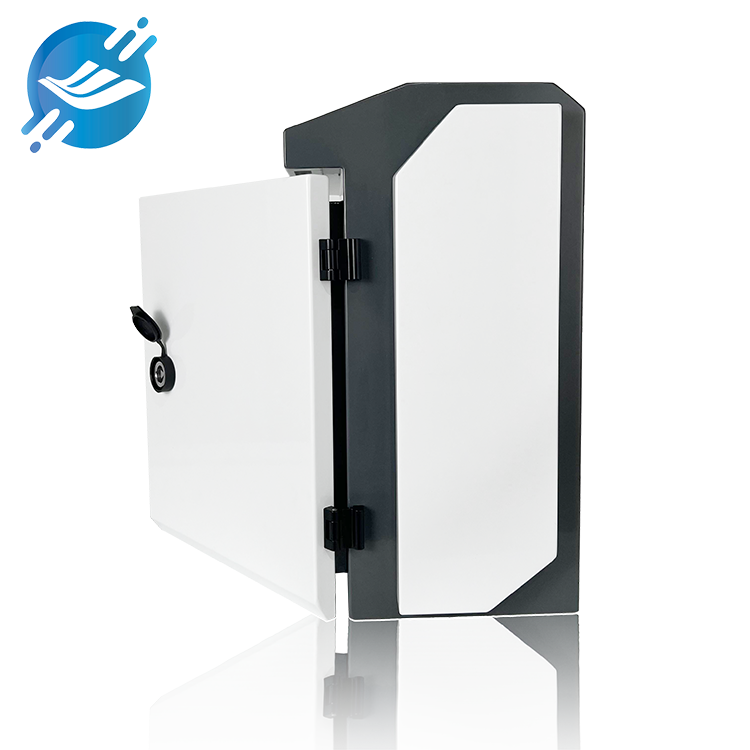

The front-facing door is hinged on one side and secured with a key-operated cam lock. This door is designed with a folded edge and an internal silicone gasket that runs along its perimeter to form a tight seal when closed. The hinge and lock are both treated for rust prevention, with the lock also protected by a rubber flap to prevent dirt or rain from entering. When opened, the door swings to a wide angle, allowing technicians full access to the interior. Optional hinge types include concealed or external hinges based on user preference.
The enclosure’s roof features a projecting overhang that serves both functional and aesthetic purposes. Functionally, it prevents rain from directly entering the door seal, thus adding a second layer of protection against water ingress. Aesthetic elements such as beveled edges and color-contrasting panels can be applied to enhance the enclosure’s appearance in urban environments. Internal design elements such as ventilation grills or condensation drainage channels can also be integrated without compromising the enclosure’s IP rating.
For mounting, the enclosure includes welded brackets or external tabs that support the use of stainless steel straps for pole attachment. These brackets are positioned to distribute weight evenly and allow for easy installation on a variety of pole diameters, including round or square profiles. Wall-mount configurations are also available, with rear holes pre-drilled or threaded inserts included for direct bolting. This dual-mounting capability increases the product’s utility across multiple industries, from city infrastructure to commercial property development.
Youlian Production Process
Youlian Factory strength
Dongguan Youlian Display Technology Co., Ltd. is a factory covering an area of more than 30,000 square meters, with a production scale of 8,000 sets/month. We have more than 100 professional and technical personnel who can provide design drawings and accept ODM/OEM customization services. The production time for samples is 7 days, and for bulk goods it takes 35 days, depending on the order quantity. We have a strict quality management system and strictly control every production link. Our factory is located at No. 15 Chitian East Road, Baishigang Village, Changping Town, Dongguan City, Guangdong Province, China.
Youlian Mechanical Equipment
Youlian Certificate
We are proud to have achieved ISO9001/14001/45001 international quality and environmental management and occupational health and safety system certification. Our company has been recognized as a national quality service credence AAA enterprise and has been awarded the title of trustworthy enterprise, quality and integrity enterprise, and more.
Youlian Transaction details
We offer various trade terms to accommodate different customer requirements. These include EXW (Ex Works), FOB (Free On Board), CFR (Cost and Freight), and CIF (Cost, Insurance, and Freight). Our preferred payment method is a 40% downpayment, with the balance paid before shipment. Please note that if an order amount is less than $10,000 (EXW price, excluding shipping fee), the bank charges must be covered by your company. Our packaging consists of plastic bags with pearl-cotton protection, packed in cartons and sealed with adhesive tape. Delivery time for samples is approximately 7 days, while bulk orders may take up to 35 days, depending on the quantity. Our designated port is ShenZhen. For customization, we offer silk screen printing for your logo. Settlement currency can be either USD or CNY.
Youlian Customer distribution map
Mainly distributed in European and American countries, such as the United States, Germany, Canada, France, the United Kingdom, Chile and other countries have our customer groups.
