Custom Chemical Safety Cabinet | Youlian
Storage Cabinet Product pictures
Storage Cabinet Product parameters
| Place of Origin: | Guangdong, China |
| Product name： | Custom Chemical Safety Cabinet |
| Company name: | Youlian |
| Model Number: | YL0002342 |
| Material: | Heavy-duty steel with fire-resistant insulation |
| Size: | 900 (L) * 500 (W) * 1500 (H) mm (customizable) |
| Thickness: | Double-layer 1.0–1.5 mm steel |
| Surface Finish: | Anti-corrosion powder coating |
| Weight: | Approx. 92 kg |
| Assembly: | Fully welded body; adjustable internal shelves |
| Fire Resistance: | Up to 90 minutes protection (optional level) |

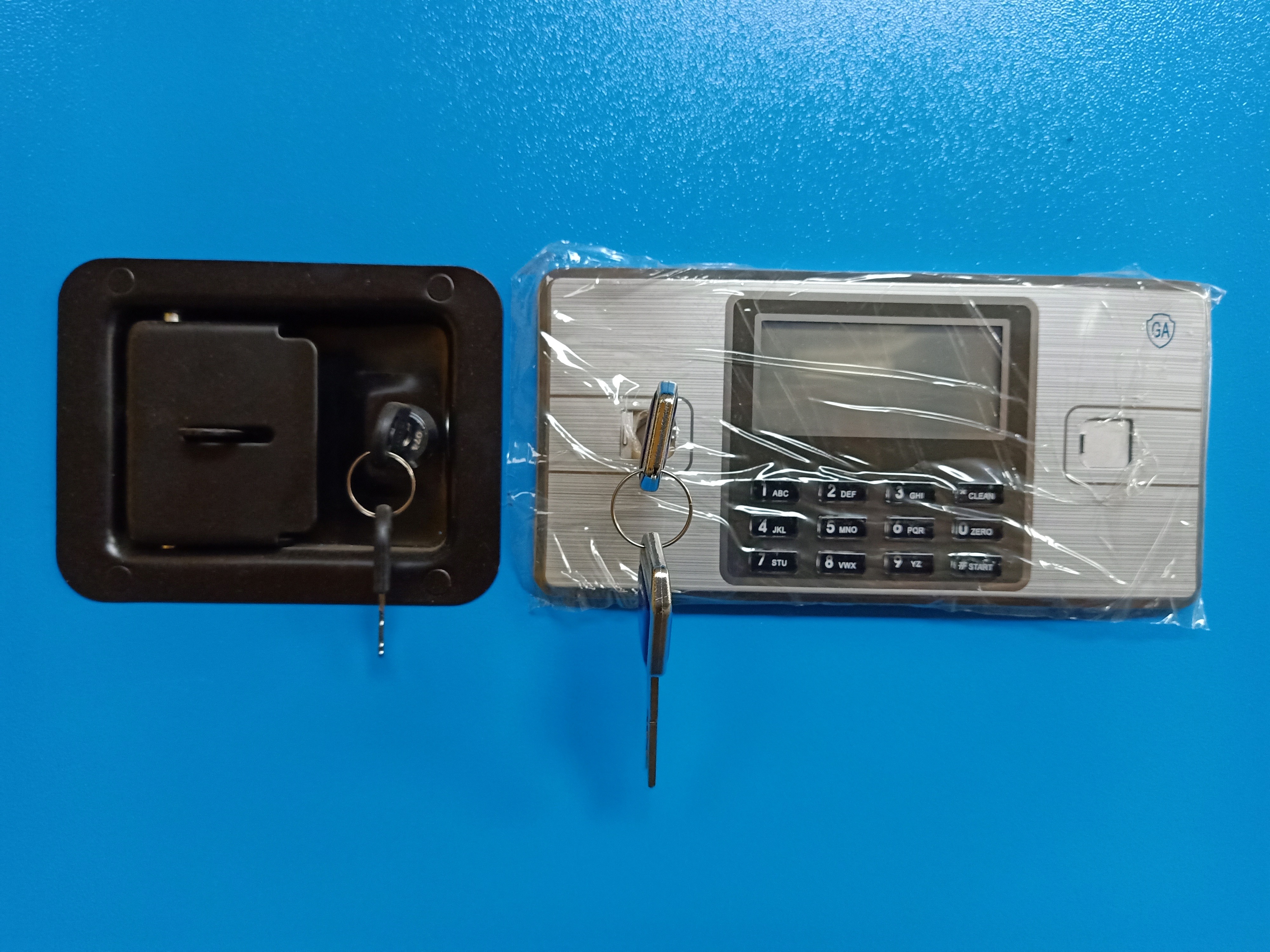

| Locking System: | Secure mechanical lock with optional digital lock |
| Ventilation: | Dual flame-arrester vents |
| Advantage: | High safety compliance, chemical resistance, durable structure |
| Application: | Factories, labs, chemical storage rooms, schools, hospitals |
| MOQ: | 100 pcs |
Storage Cabinet Product Features
The Custom Chemical Safety Cabinet is engineered to provide exceptional protection for hazardous chemical substances used in industrial and laboratory environments. The heavy-gauge steel body is constructed with a multi-layer design that creates an insulating air barrier, greatly enhancing fire protection and minimizing heat penetration during emergency conditions. Its corrosion-resistant powder-coated surface withstands harsh chemical vapors, ensuring extended use and long-term performance even in high-risk environments. This durable shell structure elevates the Custom Chemical Safety Cabinet beyond standard storage solutions by offering specialized safeguards that meet safety compliance requirements.
Safety markings and hazard labels are applied clearly on the Custom Chemical Safety Cabinet, serving as immediate visual warnings for staff handling dangerous substances. Bright multi-language “FLAMMABLE” indicators and danger icons visibly communicate storage rules, while the contrasting blue exterior color supports chemical category identification per international standards. Clear labeling enhances workplace safety management, ensuring that users recognize restricted materials instantly and handle them responsibly.

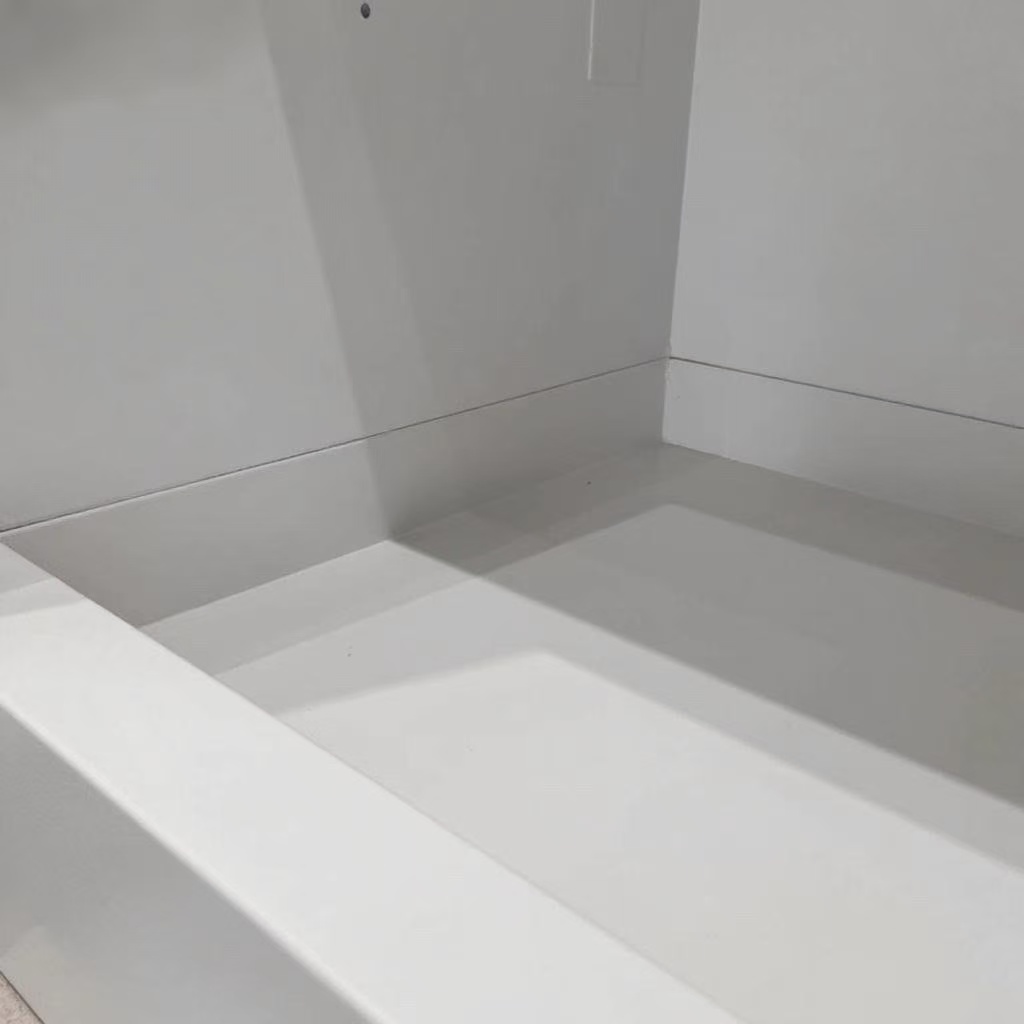

Inside, the Custom Chemical Safety Cabinet features adjustable reinforced shelves that accommodate bottles, metal containers, laboratory equipment, and various chemical packaging formats. The shelving system is designed to distribute weight evenly, reducing structural stress and preventing deformation over time. A built-in liquid containment sump prevents accidental leaks and spills from escaping the cabinet, protecting the surrounding workspace from contamination while simplifying cleanup tasks. Every detail of this interior layout supports efficient organization and compliance with chemical handling protocols.
The ventilation system of the Custom Chemical Safety Cabinet integrates dual flame-arrester vents located on both the sidewall and rear panel. These vents enable controlled air exchange while preventing ignition from external fire sources. Optional filtered exhaust attachments can be added for locations requiring continuous ventilation to manage fumes safely. This airflow design keeps stored materials stable and reduces risk of hazardous gas accumulation within the enclosure.
Storage Cabinet product structure
The Custom Chemical Safety Cabinet features a double-wall steel body design, forming an insulating gap between the inner and outer panels. This structural air barrier slows heat transfer, allowing the cabinet to shield its contents during fire exposure. The reinforced edges and welded seams provide a rigid enclosure that eliminates weak points and maintains cabinet integrity even under extreme temperatures. The body construction of the Custom Chemical Safety Cabinet follows strict engineering quality controls to ensure maximum protection reliability.
Inside the Custom Chemical Safety Cabinet, the adjustable shelves are manufactured from heavy-duty steel panels, capable of supporting substantial load capacity. Each shelf includes safety retainers to prevent containers from sliding when doors are opened or in the event of accidental vibration. A deep liquid sump reservoir is integrated into the cabinet base, designed to collect and isolate any spilled chemicals. This structural feature enhances workplace environmental safety and ensures efficient hazard containment.
To ensure secure door operation, the Custom Chemical Safety Cabinet incorporates specialized industrial-grade hinges mounted to the full height of the door frame. This supports smooth motion and long-lasting alignment, preventing sagging or misfit issues often seen in inferior products. The doors feature a three-point latching system that locks firmly at the top, middle, and bottom, providing evenly distributed security pressure and reducing potential forced entry risk. The structure also includes door seals specifically tested for chemical resistance and fire retardancy.
Ventilation is another core structural element of the Custom Chemical Safety Cabinet. The flame-arrester vents are precisely placed and designed with protective mesh that prevents ignition propagation. Optional duct connection ports allow the cabinet to integrate with facility ventilation systems if required. Additional structure enhancements such as wall-mounting holes or floor anchor points provide flexibility for secure installation in a wide range of environments. The external corner reinforcement and powder-coated finish further complete a high-grade cabinet build that withstands time, impact, and corrosive exposure.
Youlian Production Process
Youlian Factory strength
Dongguan Youlian Display Technology Co., Ltd. is a factory covering an area of more than 30,000 square meters, with a production scale of 8,000 sets/month. We have more than 100 professional and technical personnel who can provide design drawings and accept ODM/OEM customization services. The production time for samples is 7 days, and for bulk goods it takes 35 days, depending on the order quantity. We have a strict quality management system and strictly control every production link. Our factory is located at No. 15 Chitian East Road, Baishigang Village, Changping Town, Dongguan City, Guangdong Province, China.
Youlian Mechanical Equipment
Youlian Certificate
We are proud to have achieved ISO9001/14001/45001 international quality and environmental management and occupational health and safety system certification. Our company has been recognized as a national quality service credence AAA enterprise and has been awarded the title of trustworthy enterprise, quality and integrity enterprise, and more.
Youlian Transaction details
We offer various trade terms to accommodate different customer requirements. These include EXW (Ex Works), FOB (Free On Board), CFR (Cost and Freight), and CIF (Cost, Insurance, and Freight). Our preferred payment method is a 40% downpayment, with the balance paid before shipment. Please note that if an order amount is less than $10,000 (EXW price, excluding shipping fee), the bank charges must be covered by your company. Our packaging consists of plastic bags with pearl-cotton protection, packed in cartons and sealed with adhesive tape. Delivery time for samples is approximately 7 days, while bulk orders may take up to 35 days, depending on the quantity. Our designated port is ShenZhen. For customization, we offer silk screen printing for your logo. Settlement currency can be either USD or CNY.
Youlian Customer distribution map
Mainly distributed in European and American countries, such as the United States, Germany, Canada, France, the United Kingdom, Chile and other countries have our customer groups.
